COD ORIGINAL: 31358339, 31358349, 31358361, 31358393, 744131M1, 6676592A1, 14-040200-00, VPB1012

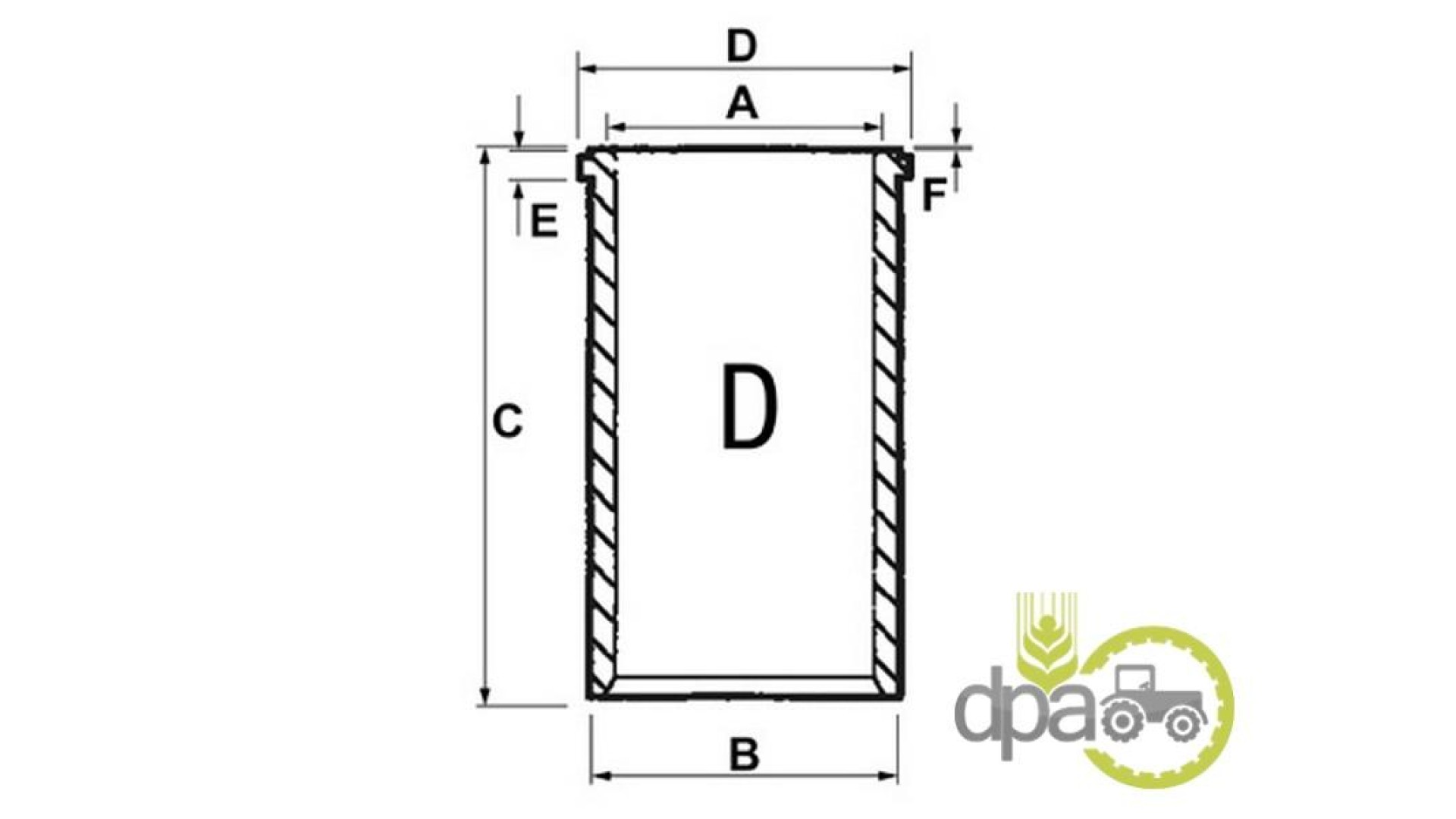

DATE TEHNICE:

A = 98.48 mm
B = 103.24 mm
C = 227.279 mm
D = 106.23 mm
E = 3.81 mm
F = 0.89 mm



SE POTRIVESTE LA:

Massey Ferguson

Seria: 100
165 (Rope seal / 3 ring piston ), 168 (Lip seal ), 168F (Lip seal ), 168S (Lip seal ), 174 (Lip seal / 4 ring piston ), 174C (Early blocks 103.19mm bore ), 174F (Early blocks 103.19mm bore ), 174S (Early blocks 103.19mm bore ), 174V (Early blocks 103.19mm bore ), 175 (Lip seal ), 175S (Lip seal ), 184 (Early blocks 103.19mm bore, Liner with flame ring ), 184F (Lip seal ), 184S (Lip seal ),

Seria: 1000
1004T (-> U027773M Early blocks 103.19mm bore ), 1014 (5 ring piston ), 1024 (3 ring piston ), 1100 (5 ring piston ), 1104 (5 ring piston ), 1105, 1114 (3 ring piston ), 1130, 1134, 1135, 1200 (5 ring piston ), 1250 (3 ring piston ),

Seria: 200
255 (USA) (Early blocks 103.19mm bore, Liner with flame ring ), 265 (Early blocks 103.19mm bore ), 273 (Early blocks 103.19mm bore ), 274 (Early blocks 103.19mm bore ), 274C (Early blocks 103.19mm bore ), 274CF (Early blocks 103.19mm bore ), 274S (Early blocks 103.19mm bore ), 274SK (Early blocks 103.19mm bore ), 275 (Early blocks 103.19mm bore ), 275E (Early blocks 103.19mm bore, Liner with flame ring ), 283 (Early blocks 103.19mm bore ), 284 (Early blocks 103.19mm bore, Liner with flame ring ), 284S (Early blocks 103.19mm bore, Liner with flame ring ),

Seria: 200 (Brasil - South Africa)
265 (Early blocks 103.19mm bore ),

Seria: 2600
2620 (3 ring piston ), 2625 (3 ring piston ), 2640 (3 ring piston ), 2645 (3 ring piston ), 2675 (3 ring piston ), 2680, 2685,

Seria: 2700
2705, 2720, 2725,

Seria: 300
362 (Early blocks 103.19mm bore, Liner with flame ring ), 362N (Early blocks 103.19mm bore, Liner with flame ring ), 365 (Early blocks 103.19mm bore, Liner with flame ring ), 367CF (Early blocks 103.19mm bore, Liner with flame ring ), 372N (Early blocks 103.19mm bore, Liner with flame ring ), 373 (Early blocks 103.19mm bore, Liner with flame ring ), 373LX (Early blocks 103.19mm bore, Liner with flame ring ), 373S (Early blocks 103.19mm bore, Liner with flame ring ), 374AP (Early blocks 103.19mm bore, Liner with flame ring ), 374AP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 374AQ (Early blocks 103.19mm bore, Liner with flame ring ), 374F (Early blocks 103.19mm bore, Liner with flame ring ), 374FP (Early blocks 103.19mm bore, Liner with flame ring ), 374FP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 374FQ (Early blocks 103.19mm bore, Liner with flame ring ), 374GE (Early blocks 103.19mm bore, Liner with flame ring ), 374GE(X) (Early blocks 103.19mm bore, Liner with flame ring ), 374H (Early blocks 103.19mm bore, Liner with flame ring ), 374S (Early blocks 103.19mm bore, Liner with flame ring ), 374SP (Early blocks 103.19mm bore, Liner with flame ring ), 374SP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 374SQ (Early blocks 103.19mm bore, Liner with flame ring ), 374V (Early blocks 103.19mm bore, Liner with flame ring ), 374VQ (Early blocks 103.19mm bore, Liner with flame ring ), 375 (Early blocks 103.19mm bore, Liner with flame ring ), 375E (Early blocks 103.19mm bore, Liner with flame ring ), 376C (Early blocks 103.19mm bore, Liner with flame ring ), 376CF (Early blocks 103.19mm bore, Liner with flame ring ), 376XCF (Early blocks 103.19mm bore, Liner with flame ring ), 377 (Early blocks 103.19mm bore, Liner with flame ring ), 383 (Early blocks 103.19mm bore, Liner with flame ring ), 383LX (Early blocks 103.19mm bore, Liner with flame ring ), 383S (Early blocks 103.19mm bore, Liner with flame ring ), 384AP (Early blocks 103.19mm bore, Liner with flame ring ), 384AP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 384AQ (Early blocks 103.19mm bore, Liner with flame ring ), 384F (Early blocks 103.19mm bore, Liner with flame ring ), 384FP (Early blocks 103.19mm bore, Liner with flame ring ), 384FP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 384FQ (Early blocks 103.19mm bore, Liner with flame ring ), 384GE (Early blocks 103.19mm bore, Liner with flame ring ), 384GE(X) (Early blocks 103.19mm bore, Liner with flame ring ), 384S (Early blocks 103.19mm bore, Liner with flame ring ), 384SP (Early blocks 103.19mm bore, Liner with flame ring ), 384SP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 384SQ (Early blocks 103.19mm bore, Liner with flame ring ), 384V (Early blocks 103.19mm bore, Liner with flame ring ), 384VQ (Early blocks 103.19mm bore, Liner with flame ring ), 387 (Early blocks 103.19mm bore, Liner with flame ring ), 399 (3 ring piston ),

Seria: 3000
3050 (Early blocks 103.19mm bore ), 3080 (3 ring piston ), 3090 (3 ring piston ),

Seria: 3200-3300
3220AP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 3220FP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 3220GE(X) (Early blocks 103.19mm bore, Liner with flame ring ), 3220SP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 3225AP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 3225FP(X) (Early blocks 103.19mm bore, Liner with flame ring ), 3225GE(X) (Early blocks 103.19mm bore, Liner with flame ring ), 3225SP(X) (Early blocks 103.19mm bore, Liner with flame ring ),

Seria: 3600
3610 (3 ring piston ), 3630, 3650,

Seria: 500
565 (Early blocks 103.19mm bore ), 575 (Early blocks 103.19mm bore ),

Seria: 600
675 (Early blocks 103.19mm bore ), 698T (-> U027773M Early blocks 103.19mm bore ), 699 (3 ring piston ),


industrial Massey Ferguson
30D (Early blocks 103.19mm bore ), 3303, 3305, 50 (Early blocks 103.19mm bore ), 50B (Early blocks 103.19mm bore ), 50B MKII (Early blocks 103.19mm bore ), 50C (Early blocks 103.19mm bore ), 50D (Early blocks 103.19mm bore ), 50E (Early blocks 103.19mm bore ), 50H (Early blocks 103.19mm bore ), 50H-S (Early blocks 103.19mm bore, Liner with flame ring ), 50H-T (Early blocks 103.19mm bore, Liner with flame ring ), 60 (Early blocks 103.19mm bore ),


Combina Massey Ferguson
10 Plot (Early blocks 103.19mm bore, Liner with flame ring ), 16 (Early blocks 103.19mm bore, Liner with flame ring ), 16 Plot (Early blocks 103.19mm bore, Liner with flame ring ), 186, 187 (Early blocks 103.19mm bore, Liner with flame ring ), 206 (Early blocks 103.19mm bore, Liner with flame ring ), 20XP (-> U027773M Early blocks 103.19mm bore ), 24 (3 ring piston ), 240 (Early blocks 103.19mm bore, Liner with flame ring ), 29, 29XP, 307 (Early blocks 103.19mm bore, Liner with flame ring ), 31, 31XP, 330 (Early blocks 103.19mm bore, Liner with flame ring ), 500 (5 ring piston ), 507 (5 ring piston ), 510 (5 ring piston ), 515 (5 ring piston ), 520 (5 ring piston ), 525 (5 ring piston ), 530 (3 ring piston ), 530S (3 ring piston ), 535 (3 ring piston ), 560, 565, 660, 665, 750, 760, 8 Plot (Early blocks 103.19mm bore, Liner with flame ring ), 800 (3 ring piston ), 805 (3 ring piston ), 810 (3 ring piston ), 815 (3 ring piston ), 820, 825, 830, 835, 840, 845, 850, 855, 860, 99 (Early blocks 103.19mm bore, Liner with flame ring ),


Landini

Seria: 30
6530F, 6530L, 6830, 7530F, 7530L, 7830,

Seria: 40
6840,

Seria: 50
6550, 7550,

Seria: 500
6500,

Seria: 505
7505,

Seria: Large
10000, 12500, 13000, 14500, 16000, 16500, 9550,


Volvo
2200, 2204, 2250, 2254, 500,


TIP MOTOR:

A4.236 - Maxion Intl. Brasil
A4.236 - Perkins
Unknown - Perkins
AT4.236 - Perkins
A4.212 - Perkins
A6.354.4 - Perkins
AT6.354.1 - Perkins
A6.354 - Perkins
AT6.354.4 - Perkins
AT6.354 - Perkins
A6.354.1 - Perkins
- UNKNOWN
D39T - Volvo-BM
