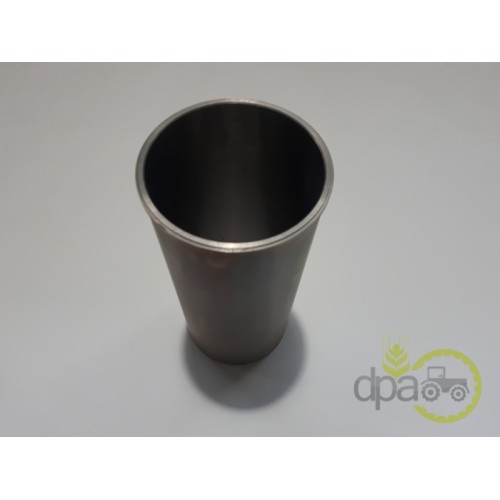

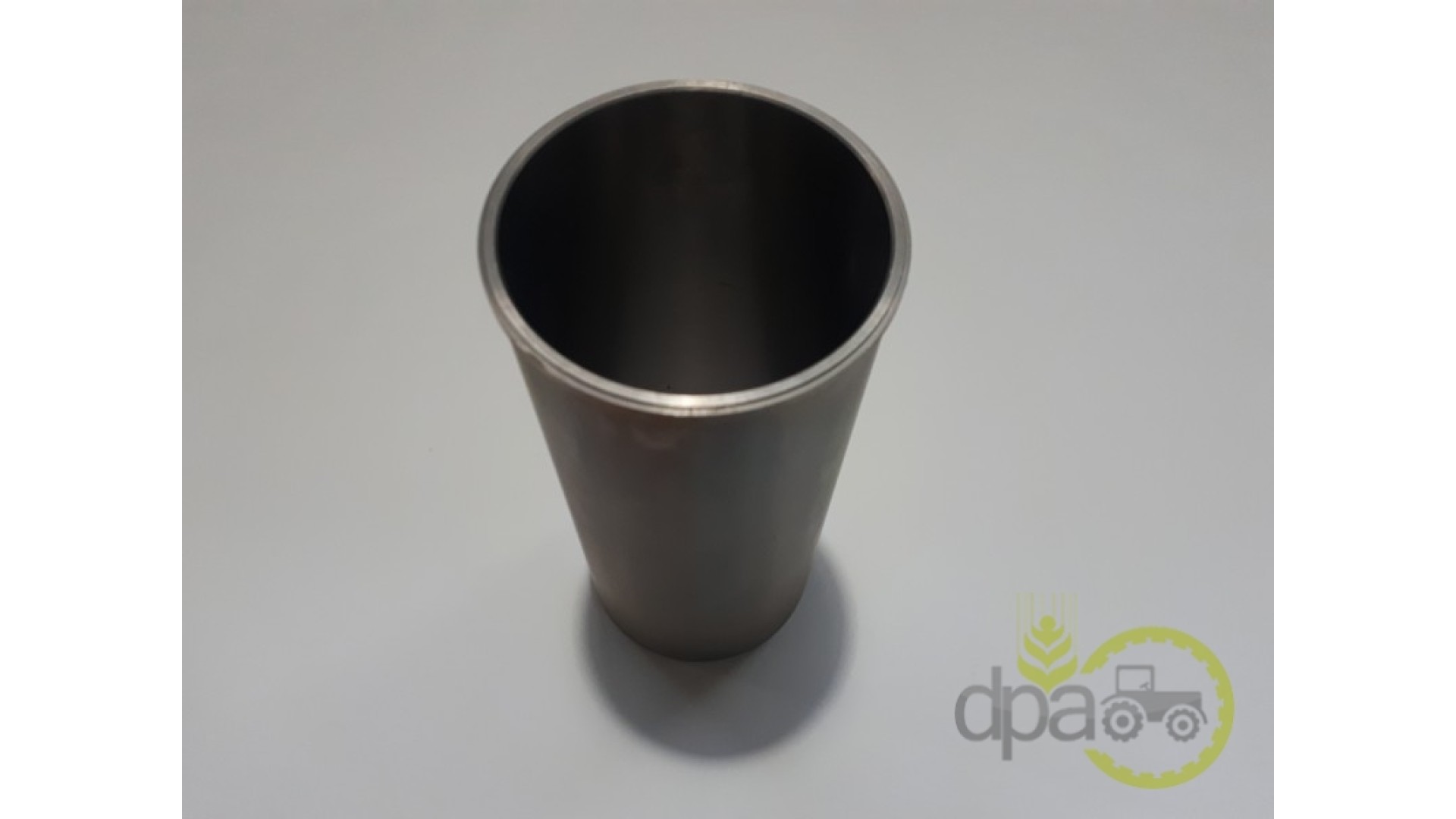

COD ORIGINAL: 3135X031, 3637031M1, 3637331M1, VPB1022, 36-22,


DATE TEHNICE:

A: 98.48 mm
B: 104.20 mm
C: 226.44 mm
D: 107.37 mm
E: 3.81 mm


SE POTRIVESTE LA:

Massey Ferguson

Tractor
Serie: 100
168 (Later blocks 104.20mm bore ÄŽ ), 168F (Later blocks 104.20mm bore ÄŽ ), 168S (Later blocks 104.20mm bore ÄŽ ), 174 (Later blocks 104.20mm bore ÄŽ ), 174C (Later blocks 104.20mm bore ÄŽ ), 174F (Later blocks 104.20mm bore ÄŽ ), 174S (Later blocks 104.20mm bore ÄŽ ), 174V (Later blocks 104.20mm bore ÄŽ ), 175 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 175S (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 184 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 184F (Later blocks 104.20mm bore ÄŽ ), 184S (Later blocks 104.20mm bore ÄŽ ),

Serie: 1000
1004T (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 1007 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ),

Serie: 200
255 (USA) (Later blocks 104.20mm bore ÄŽ ), 265 (Later blocks 104.20mm bore ÄŽ ), 273 (Later blocks 104.20mm bore ÄŽ ), 274 (Later blocks 104.20mm bore ÄŽ ), 274C (Later blocks 104.20mm bore ÄŽ ), 274CF (Later blocks 104.20mm bore ÄŽ ), 274S (Later blocks 104.20mm bore ÄŽ ), 274SK (Later blocks 104.20mm bore ÄŽ ), 275 (Later blocks 104.20mm bore ÄŽ ), 275E (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 283 (Later blocks 104.20mm bore ÄŽ ), 284 (Later blocks 104.20mm bore ÄŽ ), 284S (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ),

Serie: 200 (Brasil - South Africa)
265 (Later blocks 104.20mm bore ÄŽ ),

Serie: 300
362 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 362N (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 365 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 367CF (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 372N (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 373 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 373LX (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 373S (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374AP (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374AP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374AQ (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374F (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374FP (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374FP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374FQ (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374GE (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374GE(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374H (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374S (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374SP (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374SP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374SQ (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374V (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 374VQ (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 375 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 375E (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 376C (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 376CF (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 376XCF (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 377 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 383 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 383LX (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 383S (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384AP (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384AP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384AQ (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384F (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384FP (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384FP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384FQ (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384GE (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384GE(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384S (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384SP (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384SP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384SQ (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384V (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 384VQ (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 387 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 390T (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 393TLX (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 394TAQ (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 396CT (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 397T (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 398 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ),

Serie: 3000
3050 (Later blocks 104.20mm bore ÄŽ ), 3065 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 3065S (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 3070 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ),

Serie: 3200-3300
3220AP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 3220FP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 3220GE(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 3220SP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 3225AP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 3225FP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 3225GE(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 3225SP(X) (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ),

Serie: 500
565 (Later blocks 104.20mm bore ÄŽ ), 575 (Later blocks 104.20mm bore ÄŽ ),

Serie: 600
675 (Later blocks 104.20mm bore ÄŽ ), 698T (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ),

Industrial tractor
Serie:
30D (Later blocks 104.20mm bore ÄŽ ), 50 (Later blocks 104.20mm bore ÄŽ ), 50B (Later blocks 104.20mm bore ÄŽ ), 50B MKII (Later blocks 104.20mm bore ÄŽ ), 50C (Later blocks 104.20mm bore ÄŽ ), 50D (Later blocks 104.20mm bore ÄŽ ), 50E (Later blocks 104.20mm bore ÄŽ ), 50H (Later blocks 104.20mm bore ÄŽ ), 50H-S (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 50H-T (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 60 (Later blocks 104.20mm bore ÄŽ ), 60HX (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 60HX-T (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ),

Combine-harvester
Serie:
10 Plot (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 16 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 16 Plot (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 187 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 206 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 20XP (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 24 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 240 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 307 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 330 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 8 Plot (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ), 99 (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ),

Telescopic loader
Serie:
24T (Later blocks 104.20mm bore ÄŽ, Liner without flame ring ),


Landini

Tractor
Serie: 30
6530F, 6530L, 6830, 7530F, 7530L, 7830,

Serie: 50
6550,

Serie: 60
6060F, 6560F, 6560L, 68CV, 7560F, 7560L, 7860HC, 9060,

Serie: 60 NG
6860, 7860,

Serie: 70
6870, 7870, 78CV,

Serie: 80
9080, 9080HC,

Serie: Advantage
65F, 65FP, 65GE, 65GT, 65GTP, 65L, 65LP, 75F, 75FP, 75GE, 75GT, 75GTP, 75L, 75LP, L95GT,

Serie: Blizzard
Blizzard 65, Blizzard 75, Blizzard 95,

Serie: Cingolati
C6830, CF6830,

Serie: Trekker
C75, C95, CF65, CF70, CF75,

Serie: Vigneti Footstep
Vigneti 65V, Vigneti 75V,

Serie: Vigneti Rex cab
Vigneti 65V,

Serie: Vigneti Rex cab Tier2
Vigneti 75V,


TIP MOTOR:

A4.236 - Maxion Intl. Brasil
AT3.152.4 - Perkins
AT4.236 - Perkins
A4.236 - Perkins
A4.212 - Perkins
