COD ORIGINAL: 747050M91, U5LP0009, 3135J042, U5LH0013, U5LL0031, 6005000937, 6005000938, VPB2200, 33-57

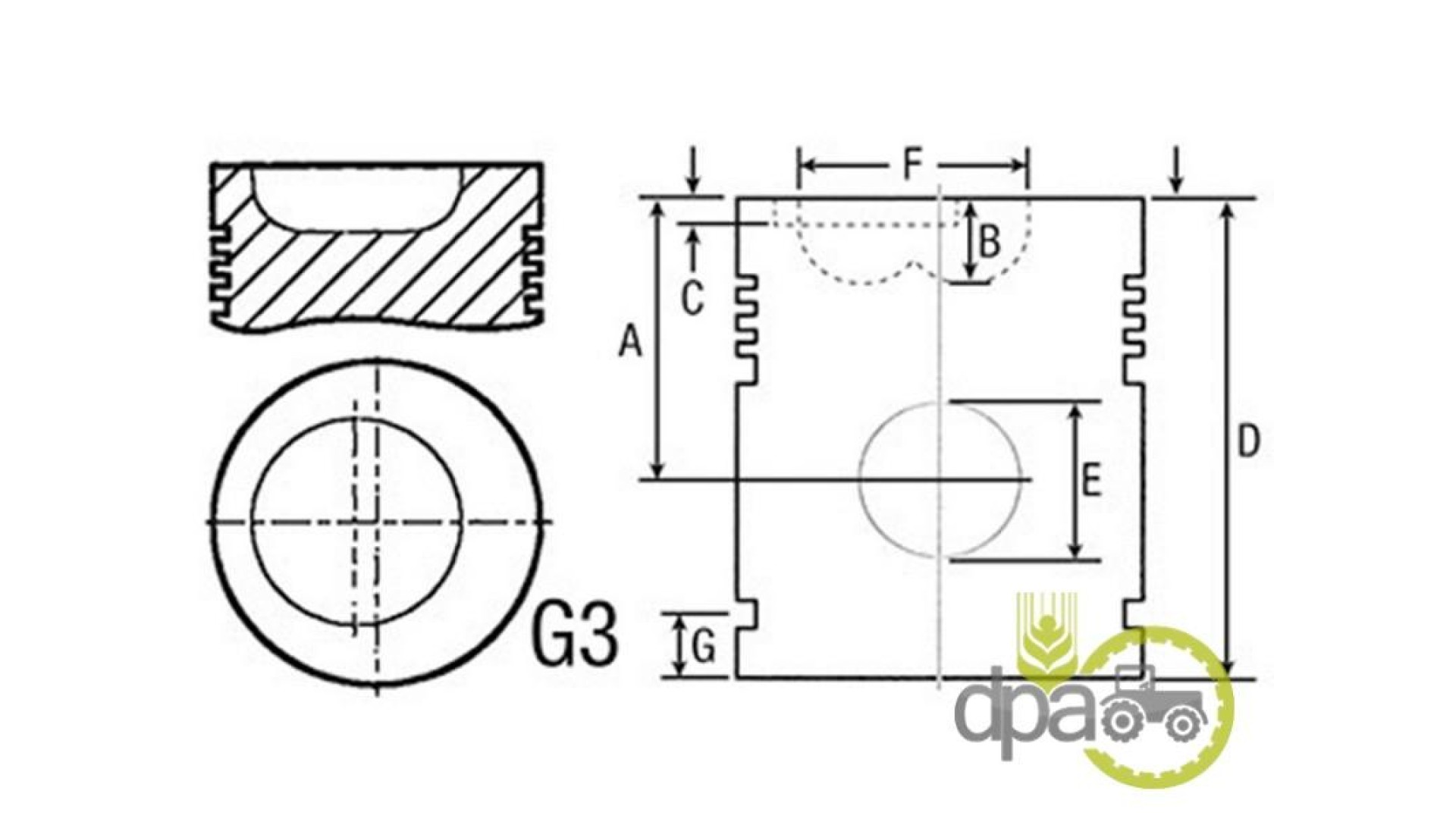

DATE TEHNICE:

Ø: 101.06 mm
A: 69.9 mm
B: 20.65 mm
D: 120.75 mm
E: 34.925 mm


SE POTRIVESTE LA:

Massey Ferguson

Seria: 100
178 (Without flame ring ), 185 (Without flame ring ), 188 (U839080J-> 3 ring piston ), 194 (Without flame ring ), 194C (Without flame ring ), 194F (U839080J-> 3 ring piston ), 194S (U839080J-> 3 ring piston ),

Seria: 200
285 (->U839080J 3 ring piston / With flame ring ), 290 (U839080J-> 3 ring piston ), 290E (Without flame ring ), 293 (Without flame ring ), 294 (U839080J-> 3 ring piston ), 294C (U839080J-> 3 ring piston ), 294S (Without flame ring ),

Seria: 300
382N (Without flame ring ), 390 (Without flame ring ), 390E (Without flame ring ), 393 (Without flame ring ), 393LX (Without flame ring ), 393S (U839080J-> 3 ring piston ), 394AP (Without flame ring ), 394AP(X) (Without flame ring ), 394AQ (Without flame ring ), 394C (Without flame ring ), 394F (Without flame ring ), 394FP (Without flame ring ), 394FP(X) (Without flame ring ), 394FQ (Without flame ring ), 394GE (Without flame ring ), 394GE(X) (Without flame ring ), 394H (Without flame ring ), 394S (Without flame ring ), 394SP (Without flame ring ), 394SP(X) (Without flame ring ), 394SQ (Without flame ring ), 396C (Without flame ring ), 396CF (Without flame ring ), 397 (Without flame ring ),

Seria: 3000
3055 (Without flame ring ), 3060 (Without flame ring ),

Seria: 3200-3300
3235AP(X) (Without flame ring ), 3235FP(X) (Without flame ring ), 3235GE(X) (Without flame ring ), 3235SP(X) (Without flame ring ),

Seria: 500
590 (->U839080J 3 ring piston / With flame ring ),

Seria: 600
690 (->U839080J 3 ring piston / With flame ring ),

Industrial Massey Ferguson
20 (U839080J-> 3 ring piston ), 50EX (Without flame ring ), 50HX (Without flame ring ), 50HX-S (U839080J-> 3 ring piston ), 50HX-T (U839080J-> 3 ring piston ), 60H (U839080J-> 3 ring piston ), 60H-S (Without flame ring ), 60HX,

Combina Massey Ferguson
Serie:
430 (Without flame ring ), 440 (Without flame ring ), 487 (U839080J-> 3 ring piston ), 506 (Without flame ring ),


Landini

Seria: 30
8530F, 8530L, 8830,

Seria: 50
8550,

Seria: 60
8560F, 8560L, 8860HC,

Seria: 60 NG
8860,

Seria: 70
8870, 88CV,

Seria: 80
8880, 8880HC,

Seria: Advantage
85F, 85FP, 85GE, 85GT, 85GTP, 85L, 85LP,

Seria: Blizzard
Blizzard 85,

Seria: Cingolati
C7830, C8860,

Seria: Trekker
C85, CF85,


Renault

80
80-12SP, 80-14SP, 80-32P, 80-34P, 85-12LS, 85-14LS,


Claas

Dominator 6
56,

Dominator 8
38, 38 S, 48, 48 S, 58, 58 S,


TIP MOTOR:

A4.248 - Perkins
AT4.236 - Perkins
A4.236 - Perkins
4.41
D226-4
